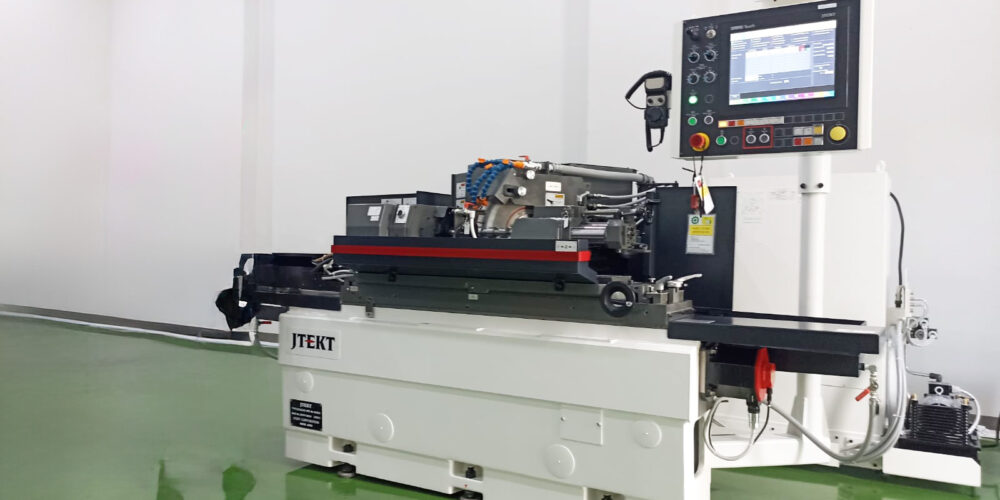

1. NEW CYLINDRICAL GRINDING MACHINE G3 SERIES (G3A50G)

Specifications :

A. Standard Package Machine

• Coolant supply unit Tank capacity: 150L no washing pump, no coolant lower limit confirmation device
• Addition of piping for washing bed and table
• Addition of washing pump
• Magnetic separator (processing capacity 80L/min)Ferrite type (JGS)
• Coolant lower limit confirmation device
• Auto-sizer, addition of piping for head and feeler cooling

B. Extra Equipments

• CNC device TOYOPUC-GC70 easy operation specification With Table direction selection lever
• Manual pulse generator (mounted on control panel)
• Work spindle ON/OFF, work spindle inching switchSoft switch on operation screen
• USB memory for GC70(Made by JTEKT, 1 USB, with backup data
• Profile dressing (15 point or less）
• Angle notch plunge grinding cycle (It is only for easy operation specification of angurar type.)

2. CYLINDRICAL GRINDING MACHINE G3 SERIES (G3P50G)

Specifications :

A. Standard Package Machine

• Table (Table swivel, Table end cover)
• Workhead (Carbide-tipped center MT No.4)
• Tailstock (Manual footstock, manual lever)
• Wheelhead (Std wheel flange 33-80 mm)
• Pump unit (12 L)
• Coolant supply unit (Cap. 150L)
• Wheel dresser (Std. wheel dresser)
• Tools (Special purpose tools)
• Control Unit (MPG, USB, Table direction)
• Instruction manual (CD)
• High precision support (Wheel bearing oil fan cooler, Transfer detection device)

B. Extra Equipments

• Table (Insert type for center distance 500 mm)
• Coolant supply unit (Magnetic separator)
• Wheel dresser (Single-Point diamond tool 8 mm)
• Drive bracket (Automatic dog 5-45 mm)
• Auto sizer (Addition of piping for head and feeler cooling)
• Workhead (Dead/Live Spindle)
• Chuck (3-Jaw 6’’)
• Wheelhead (Wheel surface speed 45 m/s, Wheel 405x75x127)
• Pump unit (Hydraulic oil pump 10L)
